DO-2501LRD-1P / LRD-1T reticles

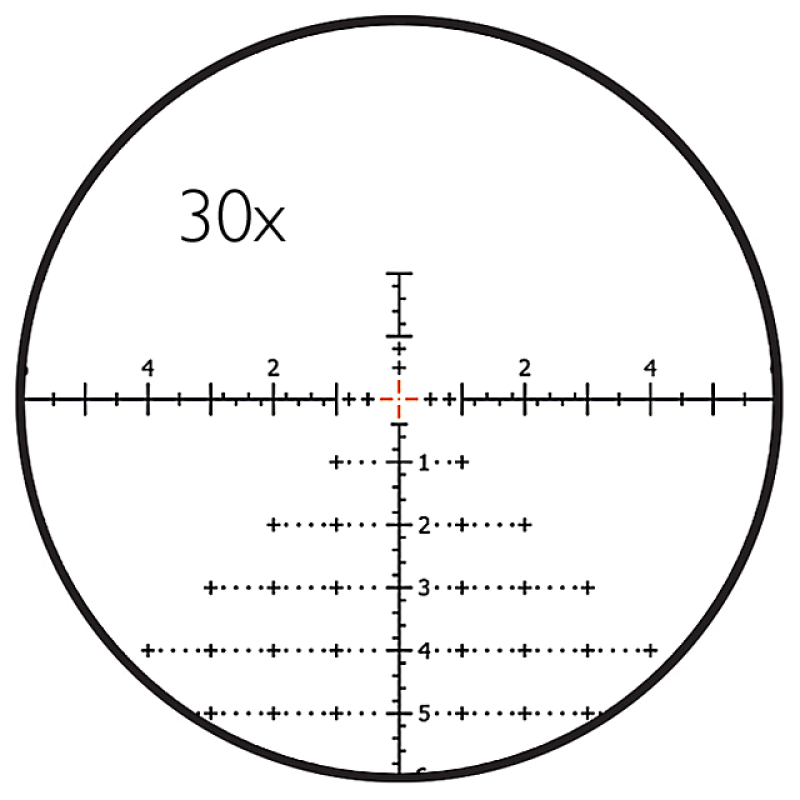

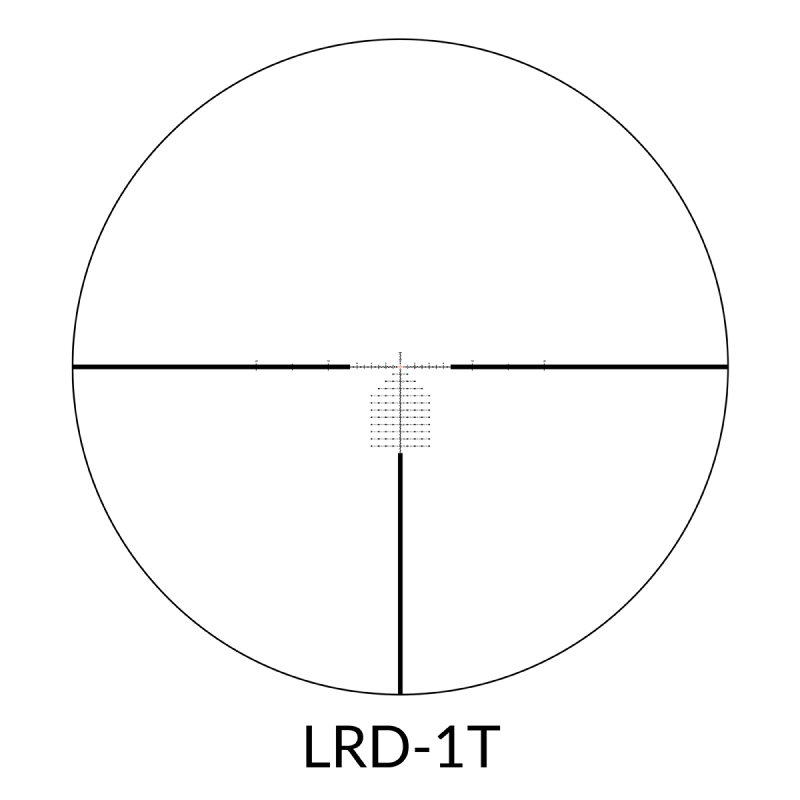

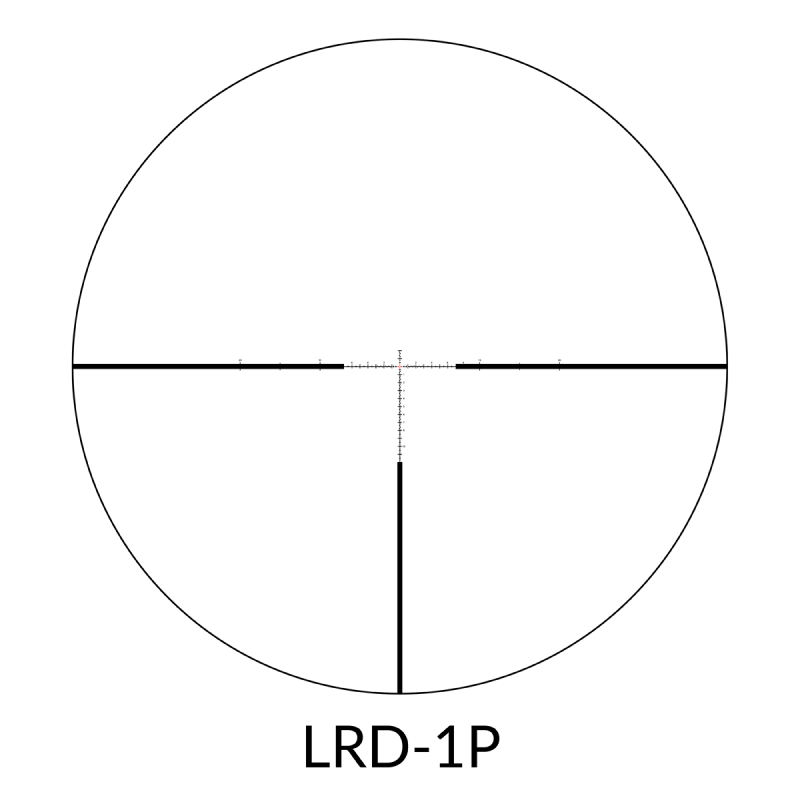

LRD-1P / LRD-1T reticles
Designed by Peder Westman from Sweden (Longrangedesign.com) to maximize fast and effective range determination, accurate windage corrections and moving target leads as well as fast holdovers at low magnifications. It´s all in PRS and tactical solution for the ambitious shooter.
The center of the reticle is an illuminated 0.045 Mil target point with surrounding, illuminated markings that form the cross.
The LRD-1P and LRD-1T Fast fire and ranging reticle using MRAD-based subtension lines for ranging, holdover and windage corrections.
Extra fine line thickness (0.03mrad) inside 1.0 mrad from center, for better ranging and aiming possibilities at long ranges.
Fast unique 0.1 mrad correction from center of the reticle, with accuracy down to 0.05 mrad.
Wind corrections with 0.1 mrad accuracy from center of the reticle for the first mrad.

DO-2502 DLR-1

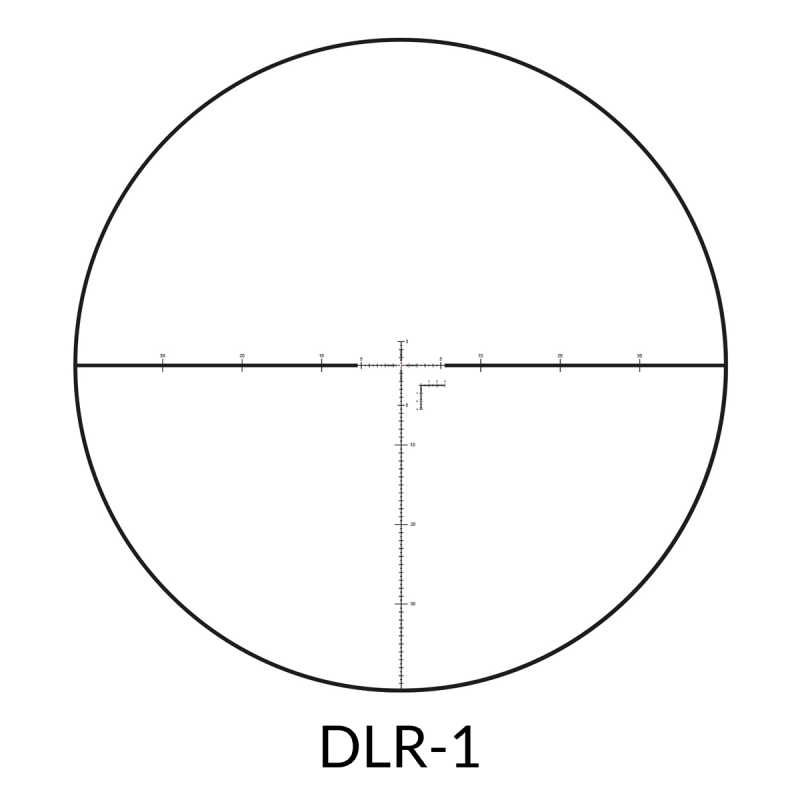

The DLR-1
Grid The central illuminated dot has a diameter of 0.07 Mil (7mm). The thin arms of the cross are 0.05 Mil (5 mm) thick, and the thick beams of the cross are 0.4 Mil (4 cm). The arms of the cross are divided by markers into lengths of 0.2, 0.5 and 1 Mil (2, 5 and 10 cm, respectively).
The reticle includes a side guide ruler that allows for accurate target measurement in the upper magnification range with an accuracy of up to 0.1 Mil (1 cm).

 DO-2500 LRD 1T

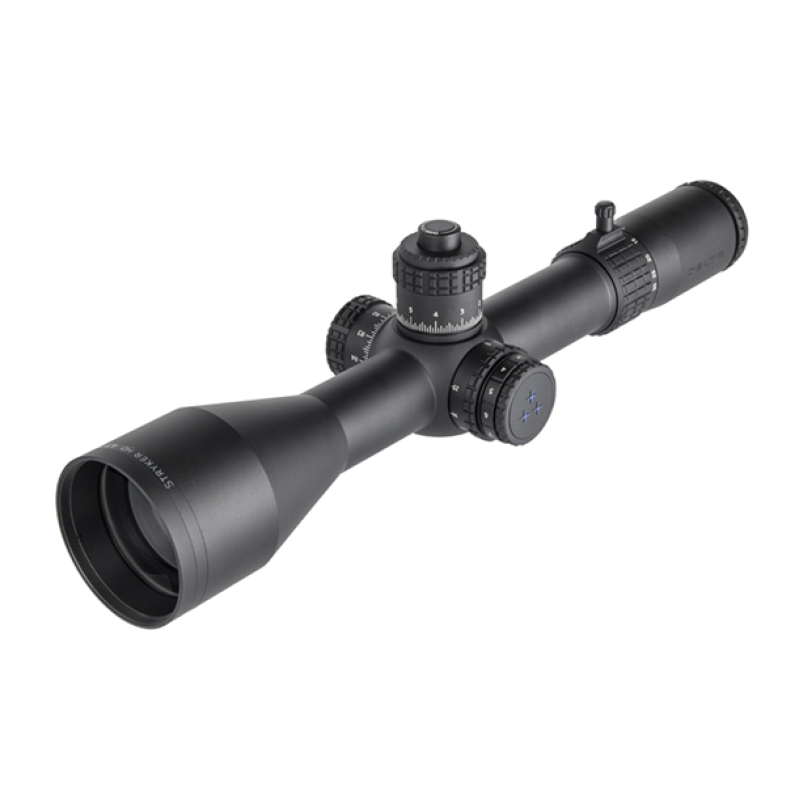

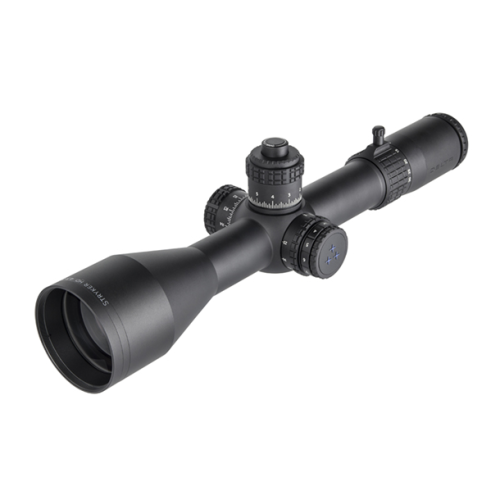

This 4.5-30x 56 is the only scope you will ever want to own.  Have your customers test them, they will be amazed at the crystal-clear glass compared to the so called top of the range.
